Bosch LB7‑UC06E – 6 W ABS Cabinet Wall‑Mount Speaker

Overview

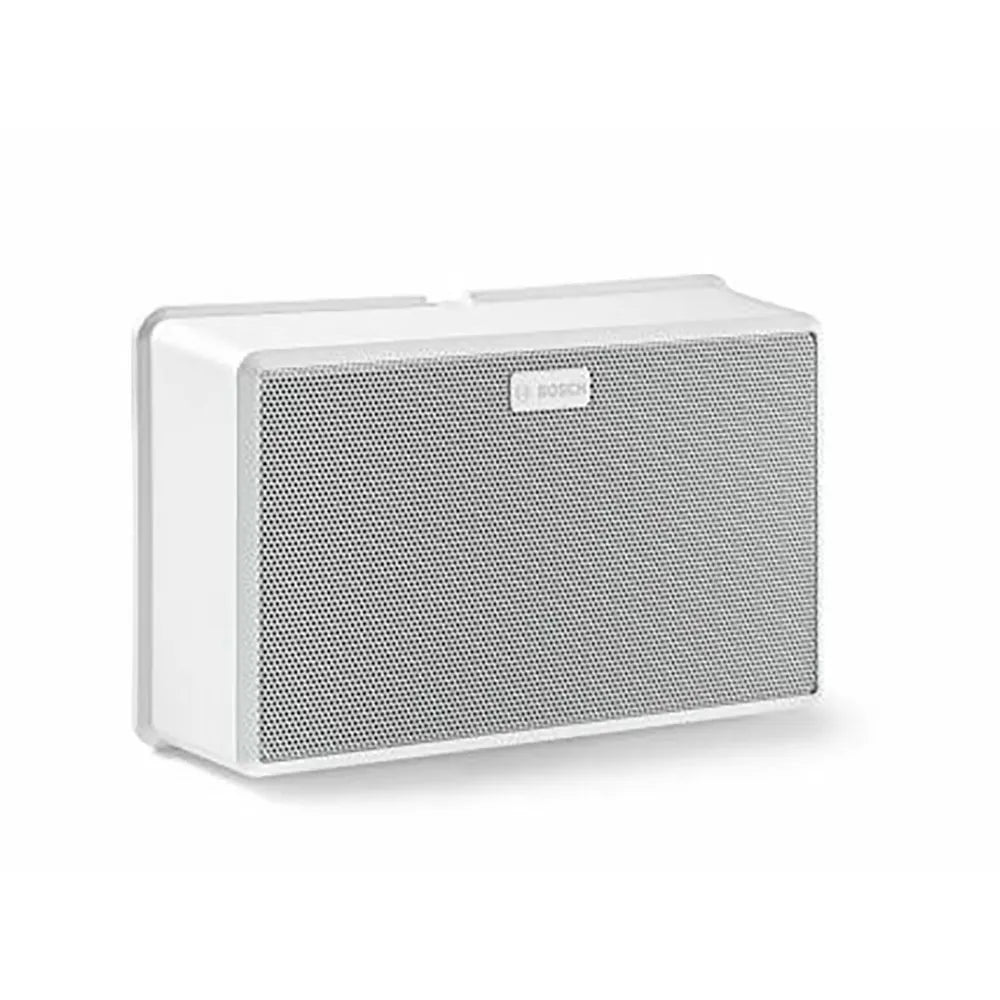

The Bosch LB7‑UC06E is a 6‑watt, passive wall‑mount loudspeaker in a sleek ABS cabinet, finished in signal white (RAL 9003). Designed for both speech and music reproduction, this speaker is certified to EN 54‑24 standards, making it ideal for public‑address and voice‑alarm systems.

Key Features

• High‑quality audio: 6 W continuous power, with a wide 160 Hz – 20 kHz frequency response and 94 dB sensitivity.

• Durable design: ABS cabinet with removable metal grille, water‑ and dust‑resistant enclosure (IP21), built to withstand harsh environments.

• Flexible installation: Wall‑mountable, with knock‑out ports for conduit or cable entry, and local volume control for easy adjustment.

• Transformer‑ready: Integrated 70 V/100 V transformer with power taps, compatible with distributed audio systems.

Technical Specs

• Dimensions: 234 × 70 × 146 mm (W×D×H)

• Weight: 1.08 kg

• Coverage: 180° × 180° dispersion

• Operating range: –10 °C to +55 °C; storage –40 °C to +70 °C; humidity up to 95% RH

Certifications & Compliance
Complies with EN 54‑24 (voice alarm loudspeaker), IEC 60268‑5, IEC/EN 62368‑1, UL 94 V‑0 flame rating.

Ideal for
Installing in offices, schools, retail spaces, and either new or retrofit public‑address systems that require clear, reliable speech intelligibility and emergency voice‑alarm compliance.
