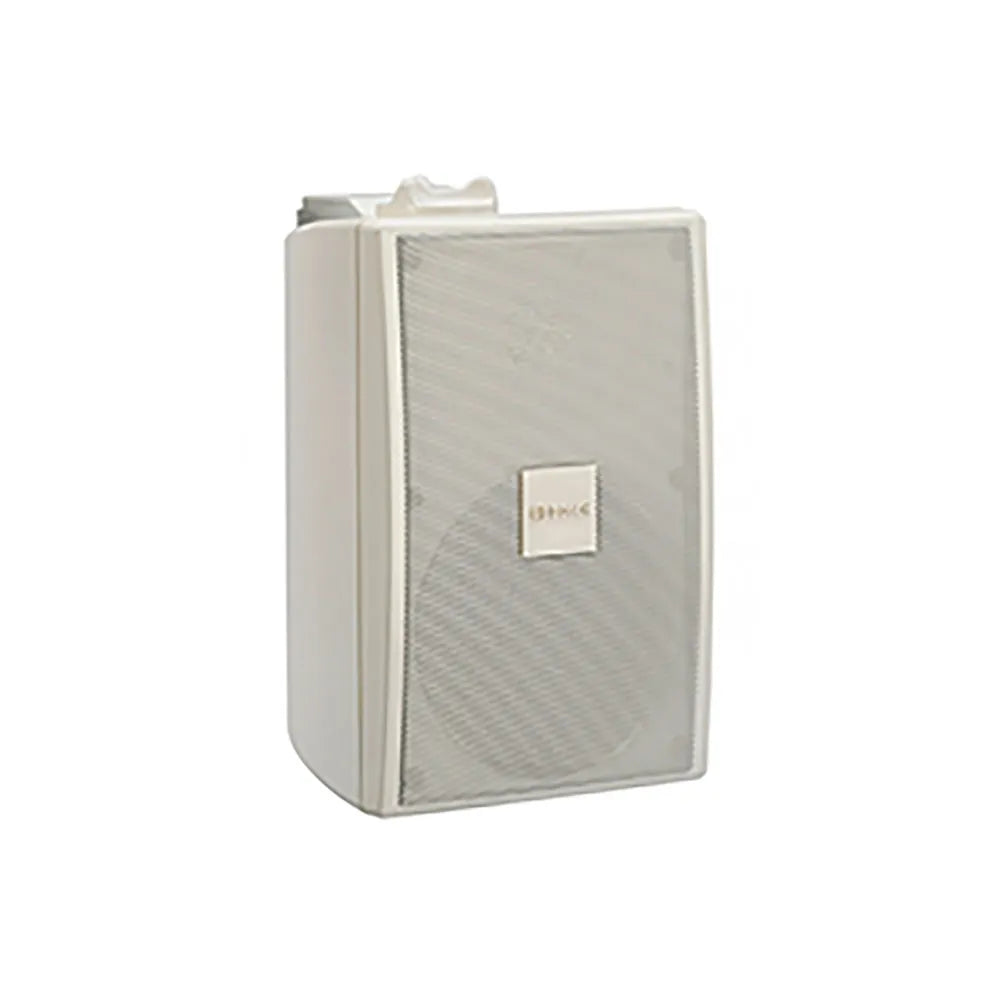

Bosch LB2-UC30-L1 speaker

Bosch LB2‑UC30‑L1 30 W Premium‑Sound Cabinet Speaker

The Bosch LB2‑UC30‑L1 is a premium 2‑way cabinet speaker engineered for both indoor and outdoor use. Featuring a powerful 5″ woofer paired with a 0.5″ dome tweeter, it delivers clear and detailed reproduction of speech, background music, or foreground audio at up to 30 W RMS (45 W peak).

Key Features

• Versatile mounting & orientation: Comes with a durable U‑bracket and anti‑theft fixings, allowing horizontal or vertical installation. The rotatable Bosch logo adapts to any orientation.

• Multi‑tapping inputs: Choose between 8 Ω, 70 V, or 100 V configurations—with selectable power taps (30, 15, 7.5, 3.75 W) via an easy-access rear switch.

• Robust, weather-resistant build: Rugged ABS enclosure, aluminum grille, and IP65 rating for reliable operation in harsh environments.

• Compliance & quality assurance: Designed to sustain operation at rated power for 100 hours per IEC 60268‑5, and undergo Bosch’s SAFE test—boosting durability under extreme conditions.

Technical Specifications

• Power handling: 30 W RMS (taps: 30/15/7.5/3.75 W); peak 45 W

• SPL: 105 dB at rated power / 90 dB at 1 W (1 kHz, @1 m)

• Frequency response: 100 Hz–18.5/19 kHz

• Dispersion: ~160° horizontal / ~150° vertical at 1 kHz

• Inputs: 8 Ω or transformer taps for 70/100 V lines

• Size & weight: ~250 × 160 × 140 mm; 2.4 kg

• Connections: Pre-wired 2 m twin‑core cable

• Operating range: –25 °C to +55 °C; ambient humidity up to 95%


Ideal For

Elevate your audio environment in cafés, restaurants, retail spaces, corporate offices, showrooms, fitness centers, parks, and presentation venues. It blends flawless speech clarity with rich musical performance in a sleek, unobtrusive design.
